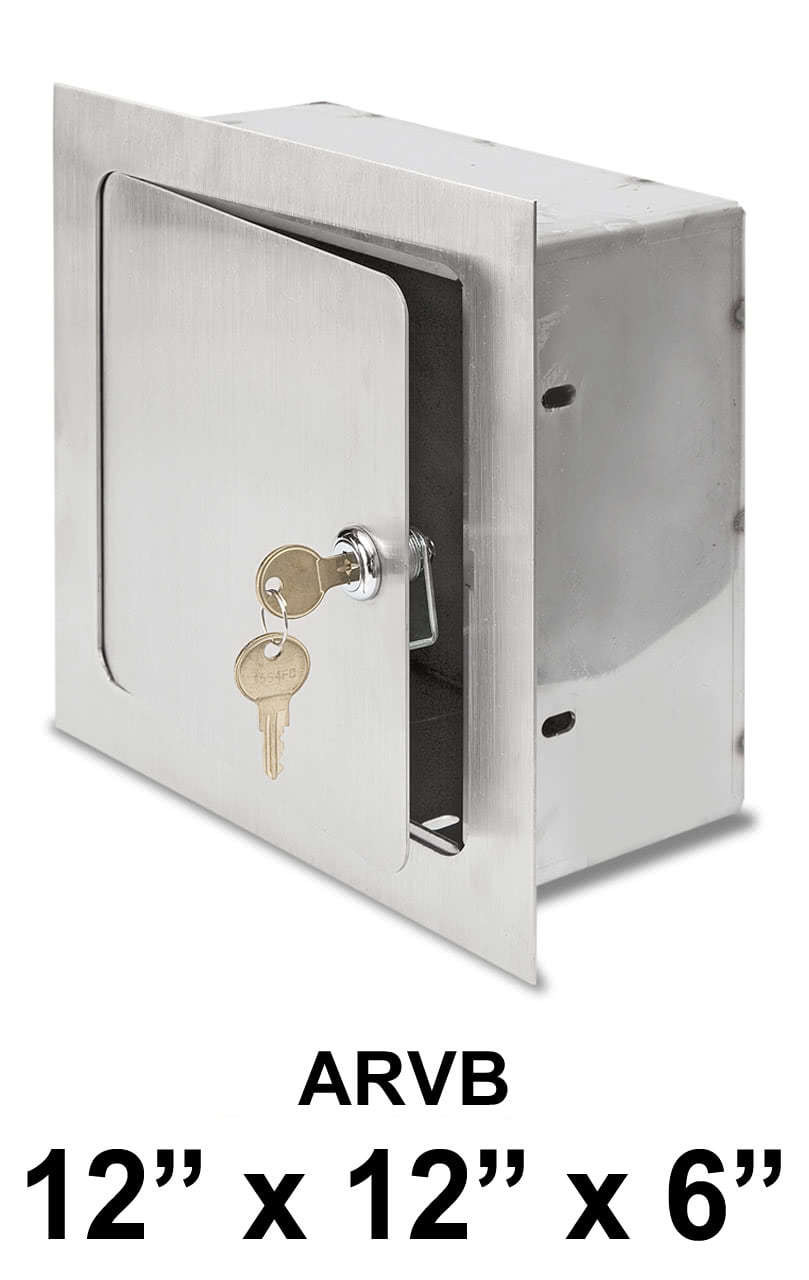

12" x 12" x 6" Recessed Valve Box

12" x 12" x 6"  Recessed Valve Box

Best Access Doors Recessed Valve Boxes BA-ARVB are designed to provide easy, convenient access to all types of valves and controls that need to be concealed in the wall, but protected by a fully enclosed box. The depth of the valve box can be modified to meet all the valve and control requirements. When required, vision panels, louvers, engraved plates can be supplied, along with special holes for pipes or conduits.

   Download Technical Data / Submittal Sheet (BA-ARVB)

 Application


• Provides easy access to all types of valves and controls that need to be concealed in the wall, but protected by a fully enclosed box

Product Features

• The depth of the valve box can be modified to meet all the valve and control requirements
• When required, vision panels, louvers, engraved plates can be supplied, along with special holes for pipes or conduits

BA-ARVB Valve Box Specifications:

• Box Material: Steel: 16 gauge door, frame, box
• Box Door: Flush to frame — rounded safety corners
• Box Frame: One piece outer flange welded to box
• Box: Fully enclosed, completely attached to frame. When required, box can be made with open back.
• Box Hinge: Continuous, concealed
• Box Latch: Cylinder lock & key, Also available: screwdriver operated cam latch, spanner head cam latch, flush paddle handle, thumb turn latch.
• Box Finish: Steel: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
