22" x 30" - Fire Rated Un-Insulated Drywall Access Door with Mud in Flange

Hover over image to zoom

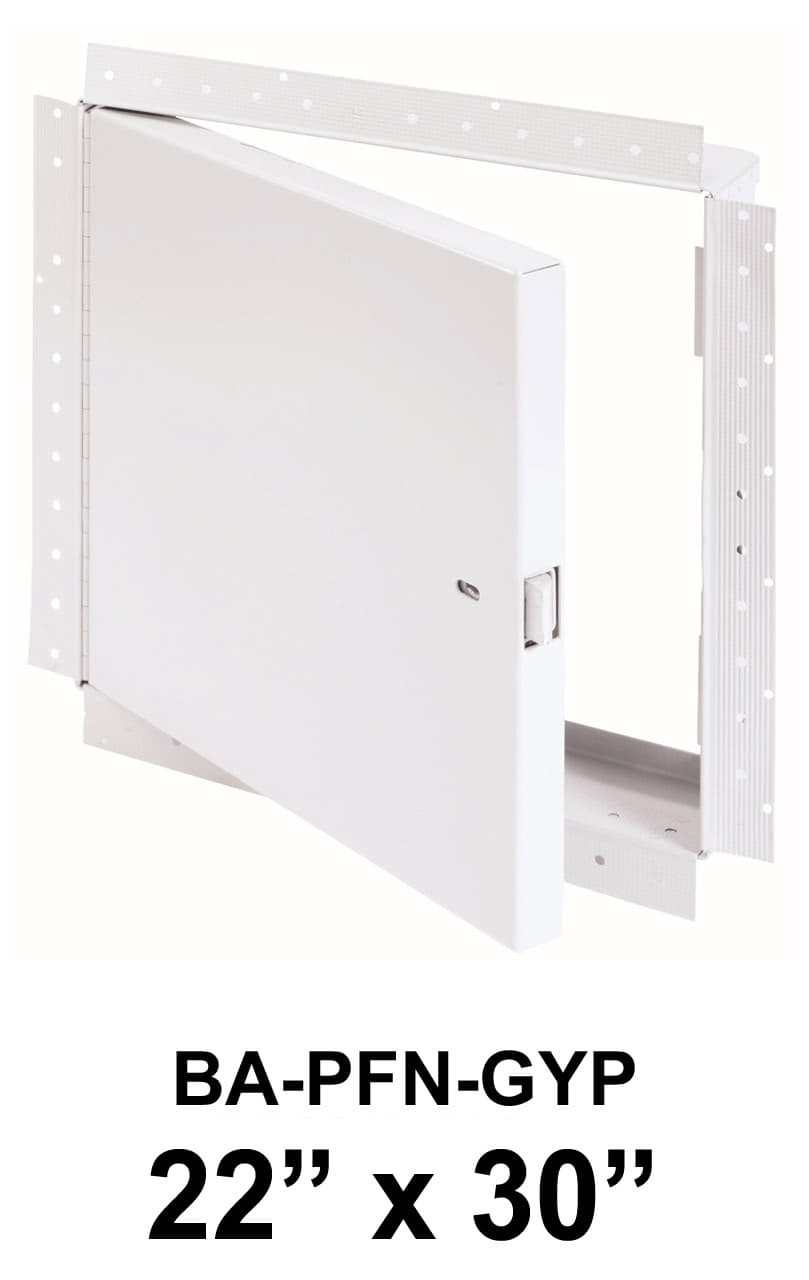

  • 22" x 30" - Drywall Access Door BA-PFN-GYP, Front View, Access Panel
  • BA-PFN-GYP, Lock and Keys, Access Panel
  • BA-PFN-GYP, Detail View, Access Panel
  • Image 4
Best Access Doors
SKU:
BA-PFN-GYP-22-30

 Product Description

The BA-PFN-GYP access door is not insulated and can only be used on fire rated walls, specifically those made of drywall. Once a sufficient layer of drywall compound is applied to its corner bead flange it will leave only the door panel visible for a much better finished look. As per UL standards, once the installation is complete and the provided springs installed, this access door will be self closing and self locking. It should not be used in situations where protection against temperature elevation is required. The largest fire rated PFN-GYP door available is: (36’’ x 36’’).

BA-PFN-GYP fire rated access door specifications,

download-button.jpg  left-arrow.pngDownload Technical Data / Submittal Sheet (BA-PFN-GYP)

Material: 16 gauge cold rolled steel frame and 20 gauge galvanneal steel door

Hinge: Continuous piano hinge

Lock / latch: Self latching tool-key operated slam latch and/or ring operated slam latch, both included

Inside panel release: Included on all slam latch fire doors

Automatic panel closer: Standard on all doors

Finish: DuPont high quality white powder coat

Packaging: Individually wrapped, 1 per box

Availability: Non-Stock - Ready to ship out in only 3 - 5 days

Fire Rating:fire-symbol.png

For installation in vertical wall assemblies



2 hour fire barrier, rating 1½ hours. Access/Door Frame Assembly (uninsulated) for installation in vertical wall assemblies. Maximum door size of: 36" x 36".



Standards listed: NFPA 252-2003, UL 10b, UL-555, CAN/ULC S112 M90-R2001, CAN/ULC S104-10.



MEA # 507-06-M



Fire rated by Intertek - Warnock Hersey  intertek-warnock.jpg

 LEED Certification:

usgbc.jpg  cbdca..jpg

This access door can contribute directly to a project's ability to achieve LEED certification:

USA

  • LEED-NC New Construction & Major Renovations
  • LEED for Schools
  • LEED-CI Commercial Interiors

CANADA

  • LEED Canada-NC New Construction & Major Renovations
  • LEED Canada-CI Commercial Interiors
