24" x 24" Hinged Floor Door with 1" Recess for Ceramic Tile / Concrete

Hover over image to zoom

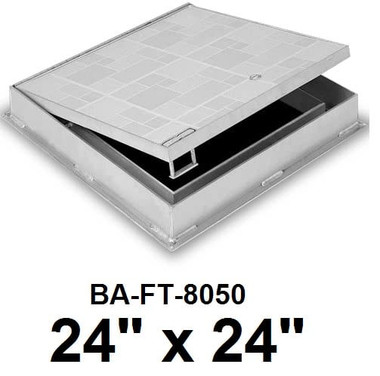

  • BA-FT-8050, Front View, Access Panel
  • BA-FT-8050, Detail View, Access Panel
  • Image 3
Best Access Doors
SKU:
BA-FT-8050-24-24

 Product Description



24" x 24" Floor Door with 1" Recess for Ceramic Tile / Concrete



The Best Access Doors BA-FT series aluminum floor access doors are designed for interior and exterior applications that require an access opening that will blend in with the surrounding floor material. The BA-FT-8050 is recessed 1" to accommodate ceramic tile, terrazzo and concrete.



download-button.jpg  left-arrow.pngDownload Technical Data / Submittal Sheet (BA-FT-8050)



Application


• Designed for interior and exterior applications that require an access opening that will blend in with the surrounding floor material


Product Features


• Recessed 1" to accommodate ceramic tile/concrete flooring
• Door panel is equipped with a flush aluminum drop handle and an automatic hold open arm


BA-FT-8050 Floor Door Specifications:


• Material: Aluminum door and frame; stainless steel hinges and hardware
• Door: 1/4" smooth aluminum plate reinforced for live load of 150 pounds/sq. ft. Extruded edging is welded to door panel, providing a 1" recess
• Frame: Channel frame fabricated from aluminum extrusion with 1 1/2" drainage coupling and integral 1" anchor flange
• Hinge: Stainless steel continuous piano hinge
• Opening Device: Automatic Hold-Open Arm with red vinyl grip allows door panel to open to 90 degrees, locking door in open position, and allowing for easy control when closing door panel. Stainless Steel Open Compression Springs provide lift assist.
• Standard Latch: Stainless steel slam lock with a fixed inside handle, removable outside handle, and removable threaded plug
• Finish: Mill finish with bituminous coating applied to exterior of frame
