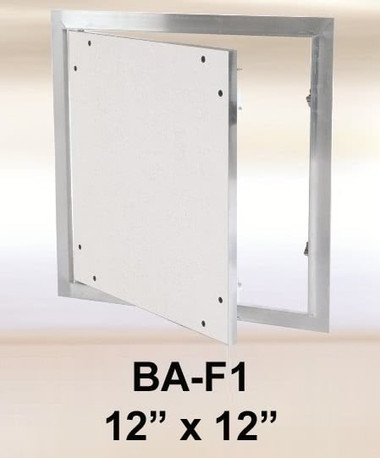

12" x 12" Drywall Inlay Access Panel with fixed hinges

12" x 12" Drywall Inlay Access Panel with fixed hinge

BA-F1 - Aluminum frame, with drywall insert, for ceilings, drywall, and various applications

The access panel consists of a welded aluminum frame and is available with or without 1/2" (12.7 mm) or 5/8" (15.9 mm) inlayed drywall and two latches (comes standard with inlay and touch latches).

Both an outer and an inner frame assembly consists of high grade aluminium which is bonded with a special welding process. For sizes 12" x 12" (305 mm x 305 mm) and up the access panels are equipped with a safety-system to prevent accidental opening. This safety system must be reattached after each opening.

The reveal of 1/6 of an inch (1.59 mm) is visible between the outer frame and door hatch. The concealed snap locks open the access panel when pressure is applied to the spring loaded latch side.

  Download Technical Data / Submittal Sheet (BA-F1-0.5)  - 5/8"

 Download Technical Data / Submittal Sheet (BA-F1-0.625) - 1/2"

 Download Installation Guide

Special advantages

• Superior engineering & innovative design
• Fast delivery
• Quick and easy installation
• Solid aluminum frame
• Flush installation in ceilings and walls
• Hatch firmly attached to outer frame to prevent loss or damage
• Lateral opening is available
• Available in moisture resistant, mildew resistant and cement board

Customized solutions

Customized sizes can be produced in every dimension upon request. (Request a Quote)
