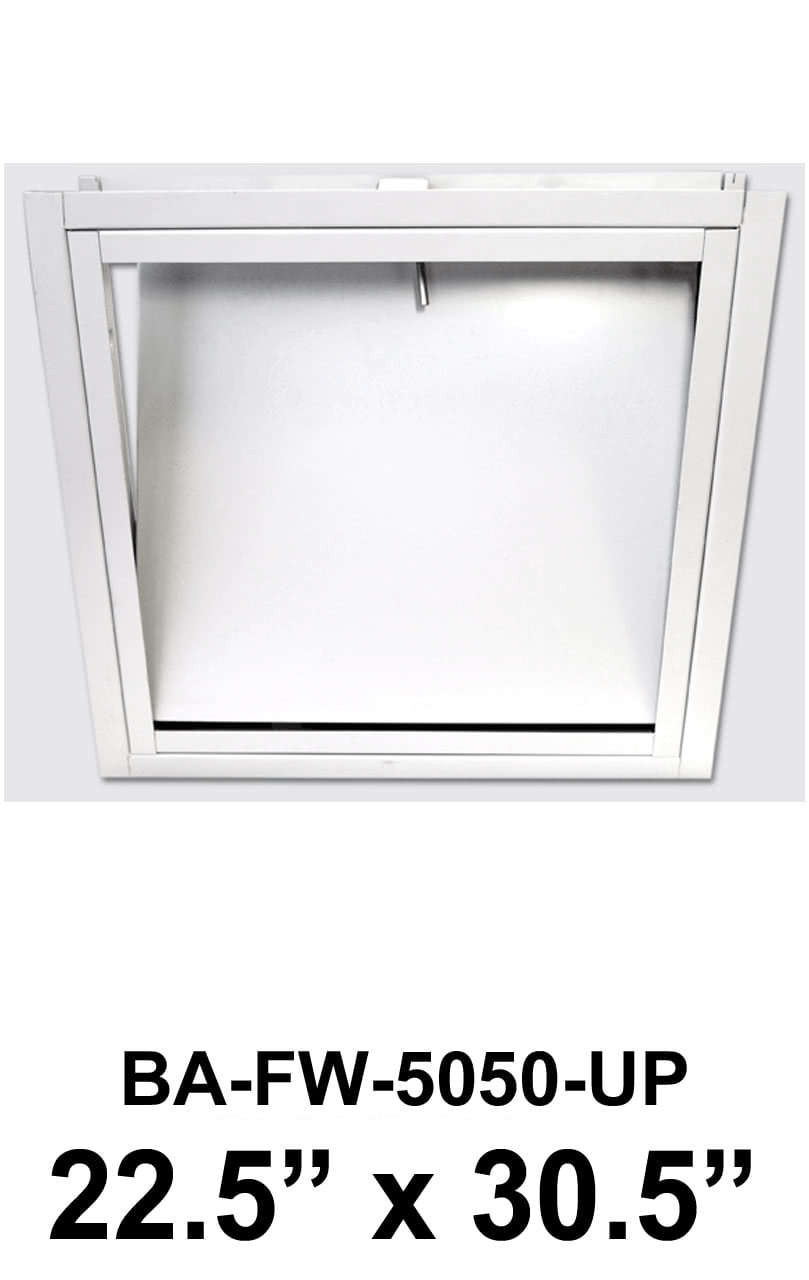

22" x 30" Fire Rated Insulated Access Door - Upward Opening

22" x 30" Fire Rated Insulated Access Door - Upward Opening

The BA-FW-5050-UP is an upswing fire rated access door approved for installation in ceilings.  This door has been approved by Warnock Hersey International for three hours, with a maximum size of 24" x 36".  The door panel is insulated and has a coil spring for dampening when closing.  The BA-FW-5050-UP is available in both steel with a prime coat of white baked enamel and also stainless steel with a #4 satin polish

  Download Technical Data / Submittal Sheet (BA-FW-5050-UP)

Application
• An insulated, fire rated access door for inward opening in ceilings

Product Features
• For fire rated ceilings, this door has been approved by Warnock Hersey International for 3 hours (max. size to 24” x 36”)
• Insulated Door Panel
• Self-Closing
• Self-Latching
• Inside Latch Release

FW-5050-UP Access Door Specifications:
• Material: Steel
• Door: 16 gauge, Flush to frame with reinforced edges filled with 2” thick fire insulation
• Mounting Frame: 16 gauge mounting frame, with trim 1" wide
• Hinge: Concealed with coil spring for dampening
• Fire Rating (Walls): UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label.Max size: 24 x 36. For Ceilings: Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling. Max size: 24x 36
• Standard Latch: L Handle - operable from both sides
• Finish: Steel: 5 stage iron phosphate preparation with prime coat of white baked-on enamel.
