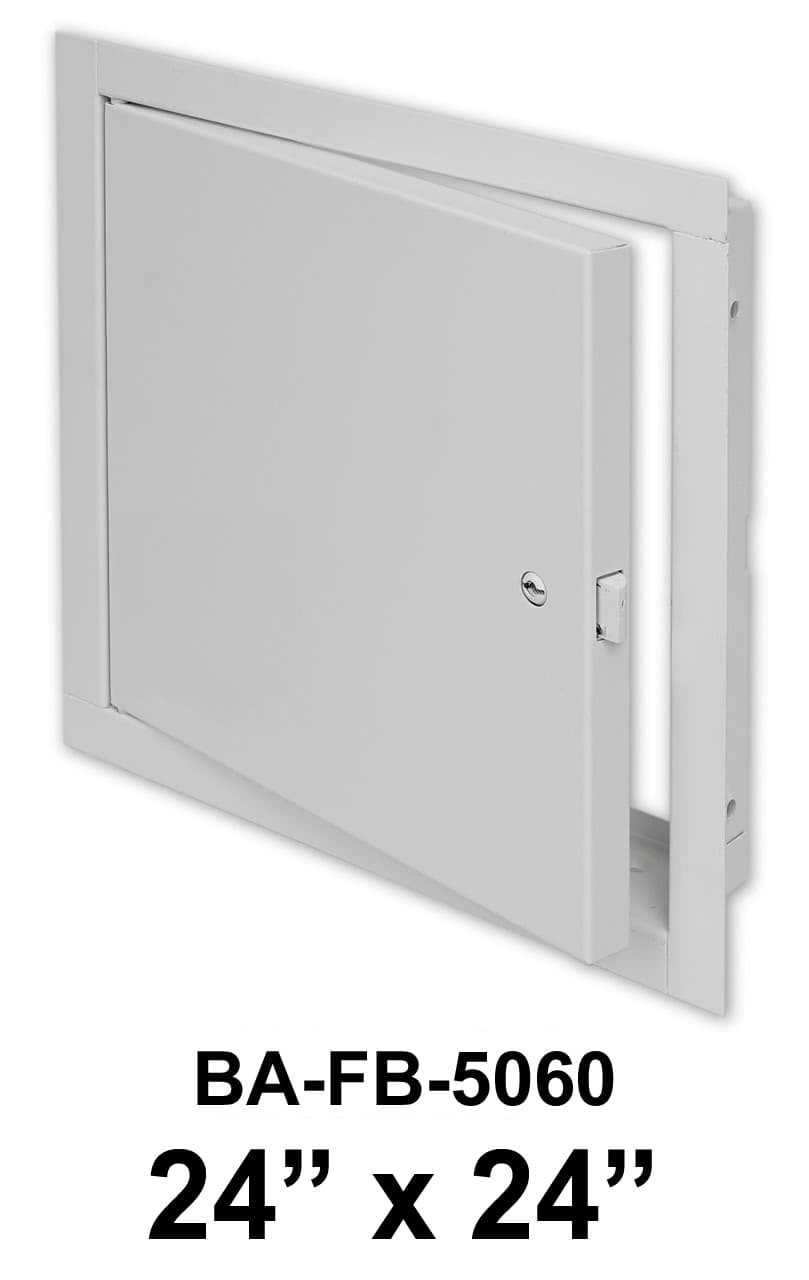

  • BA-FB-5060, Front View, Access Panel
  • BA-FB-5060, Line Drawing View, Access Panel
  • BA-FB-5060, Detail View, Access Panel
  • Image 4
Best Access Doors
SKU:
BA-FB-5060-24-24

 Product Description

24" x 24" Fire Rated Un-Insulated Access Door with Flange

Approved by Underwriters Laboratories (UL) for 1 ½ hours “B” label in walls and ULC for 2 hours “B” label in walls. Designed to maintain continuity in a 2-hour fire barrier wall, the FB-5060 should be used whenever it is necessary to provide access in fire rated walls, when temperature rise is not a factor.



In-Stock and Ready to Ship !



download-button.jpg  left-arrow.pngDownload Technical Data / Submittal Sheet (BA-FB-5060)



Application:

• Designed to provide access in walls, while maintaining an invisible, architecturally pleasing appearance Product Features



Product Features

• Concealed hinge
• Self-closing
• Self-Latching
• Inside latch release



BA-FB-5060 Access Door Specifications:


Door / Door Frame: Steel 16 gage door, 16 gage mounting frame. Flush to frame with reinforced edges, flange to be 1" wide
Hinge: Concealed
Fire Rating (Walls): UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. (optional)
Max size 36 x 48
Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
Finish: Steel: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel.
