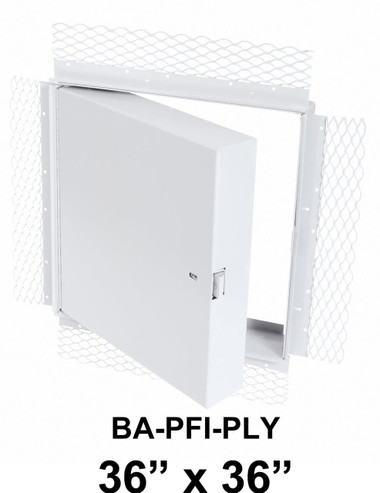

36" x 36" - Fire Rated Insulated Access Door with Plaster Flange

The BA-PFI-PLY is the ideal solution for plaster covered fire rated walls and ceilings. Once covered with plaster, the 2 3/4’’ lath flange will disappear leaving only the door panel visible. As per UL standards, once the installation is complete and the provided springs are hooked to the back of the panel, this access door will be self closing and self locking. The largest fire rated PFI-PLY access doors available for vertical and horizontal installations are respectively: (48’’ x 48’’) and (24’’ x 36’’ or 864 sq inches).

BA-PFI-PLY fire rated access door specifications,

  Download Technical Data / Submittal Sheet (BA-PFI-PLY)

Material: 16 gauge cold rolled steel frame and 20 gauge galvanneal steel door

Insulation: 2" mineral wool

Hinge: Continuous piano hinge

Lock / latch: 2 x Self latching tool-key operated slam latch and/or ring operated slam latch, both included

Inside panel release: Included on all slam latch fire doors

Automatic panel closer: Standard on all doors

Finish: DuPont high quality white powder coat

Packaging: Individually wrapped, 1 per box

Fire Rating:

For installation in vertical wall assemblies:

Rating 1 1/2 hours. Temperature rise: 250°F (139°C) at 30 mins and 450°F (250°C) at 60 mins. Maximum door size of 48" x 48".

Rating 3 hours. Temperature rise: 400°F at 60 mins. Maximum door size of 48" x 48"

Standards listed: NFPA 252-2003, UL 10(b), UL 555, CAN/ULC S112 M90-R2001, CAN/ULC S104-10.

MEA # 507-06-M

Fire rated by Intertek - Warnock Hersey

Note: This size is not rated for Horizontal / Ceiling Installation

 LEED Certification:

This access door can contribute directly to a project's ability to achieve LEED certification:

USA

• LEED-NC New Construction & Major Renovations
• LEED for Schools
• LEED-CI Commercial Interiors

CANADA

• LEED Canada-NC New Construction & Major Renovations
• LEED Canada-CI Commercial Interior

Note 1: Maximum door size 24" x 36" can also be calculated by multiplying the surface area of the door (24"x36"). The maximum surface area is 864 sq inches. The maximum height or width is 36". All door sizes equal or smaller than 864 sq inches fall within the standards. Ex. Door size of 28" x 28" = 784 sq inches.
