36" x 48" Fire Rated Insulated Access Door with Flange

Hover over image to zoom

  • BA-FB-5060, Front View, Access Panel
  • BA-FB-5060, Closed View, Access Panel
  • BA-FB-5060, Detail View, Access Panel
  • Image 4
Best Access Doors
SKU:
BA-FW-5050-36-48

 Product Description

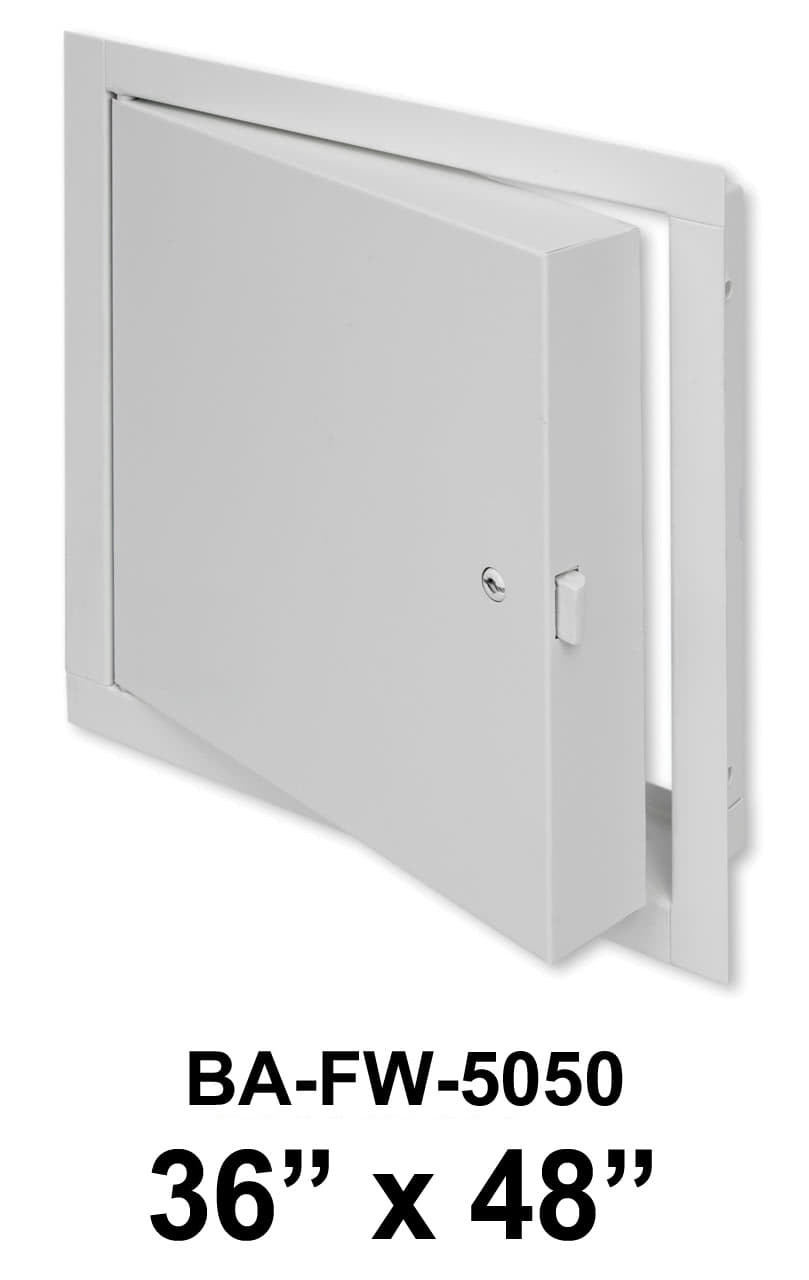

36" x 48" Fire Rated Insulated Recessed Door with Flange



The BA-FW-5050 is an insulated, fire rated access door approved for use in walls and ceilings. For walls, this door has an Underwriters Laboratories (UL and ULC), 1-1/2 hour “B” label, with a maximum temperature rise of 250 degrees after 30 minutes. This door should be used in walls when temperature rise or heat transmission is a factor. For fire rated ceilings, this door has been approved by Warnock Hersey International for 3 hours (max. size to 24” x 36”)



In-Stock and Ready to Ship !



download-button.jpg  left-arrow.pngDownload Technical Data / Submittal Sheet (BA-FW-5050)



Application:

• For all types of walls and ceilings
• This door should be used in walls when temperature rise or heat transmission is a factor.

Product Features

• Insulated door panel
• Concealed hinge
• Self-closing
• Self-Latching
• Inside latch release



BA-FB-5050 Access Door Specifications:

• Door / Door Frame: Steel  20 gage door,16 gage mounting frame Door filled with 2" thick fire rated insulation, flange to be 1" wide
Hinge: Concealed
• Fire Rating (Walls): UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label Max size: 36 x 48. (Ceilings): Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling. Max size: 24 x 36
• Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for mortise cylinder locks.
• Finish: Steel: 5 stage iron phosphate preparation with prime coat of white baked-on enamel
